LCP LYCORSEAM® Standing Seam Roof System emanates modernity and versatility in architectural appeal, yet highly functional. Its concealed clips are specially designed to minimize heat conductivity whilst maximizing sliding efficiency. LCP LYCORSEAM® is an ideal choice for aesthetically pleasing Standing Seam Roofing system.
STEEL: The strength and formability of steel makes it an ideal material for roof and wall panels. LCP LYCORSEAM® is a cold roll formed Roof and Wall cladding manufactured from high strength steel of G300 base material (300MPa minimum yield stress), with Galvalume steel (zinc ∓ Aluminium alloy) coating and color coated Galvalume steel.
ALUMINIUM: Available in mill finish or Pre-painted, Aluminium provides another choice of material for LCP LYCORSEAM® in demanding environmental situations as well as fulfilling your challenging roof designs.
OTHER MATERIALS: LCP LYCORSEAM® is also available in other non-ferrous materials. e.g. titanium- zinc, copper, etc. for further information, please contact LCP Building Products Pvt.Ltd. in order to procure standingseam profile in India.

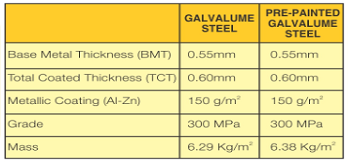

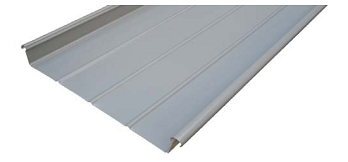

The Roofing and Wall cladding metal sheets shall be 0.55mm BMT. LCP LYCORSEAM® a curved standingseam profile in India is produced by LCP Building Products Pvt. Ltd., with ribs of 65mm height at 435mm panel cover width. The sheets shall be installed using concealed fixing clips in accordance to manufacturer’s recommendations. The fasteners used to secure the fixing clips to the supports shall conform to Australian Standard AS3566 and be compatible with the Roofing material used. The clips shall be concealed and no fasteners are to penetrate the cladding.The LCP LYCORSEAM® ribs must be mechanically seamed to complete the installation of the roof.LCP is considered as the best concave and convex standing seam supplier in India.
The sheeting material shall be protected steel sheet conforming to IS 513 and shall be with a minimum yield stress of 300MPa (Grade G300), metallic hot-dip coated with Aluminium/Zinc alloy comprising 55% Aluminium, 43.5% Zinc and 1.5% Silicon. The minimum coating mass for the Aluminium/Zinc alloy coated steel shall be AZ150 (150 g/m2 minimum coating mass) as determined by Australian Standard AS1397 / IS :277 / IS : 14246.

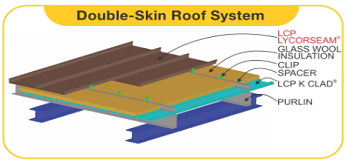

For roofs where acoustic and thermal properties are required, LCP LYCORSEAM® acoustic roof system has achieved STC (Sound Transmission Class) value of 56, with corresponding IIC (Impact Isolation Class) value of 54 and U – Value of 0.37W/m² ºK. For information on the roof build-up, please contact LCP Building Products Pvt. Ltd., Technical Department for acoustic roof system in Standingseam profile in India.This department is recognized as the best standing seam manufacturer in India.
Wherever applicable, the installation of the metal sheets shall be in accordance to the “Installation code for Metal Roofing and Wall cladding; Standards BIS 12093. A minimum of 50mm shall be provided for projection into gutters. Flashings shall be supplied in compatible materials, as specified. Minimum cover of flashing shall be 150mm. All sheeting shall be fixed in a workman like manner, leaving the job clean and weather-tight. All debris (nuts, screws, cuttings, filings etc.) shall be cleaned off daily.
